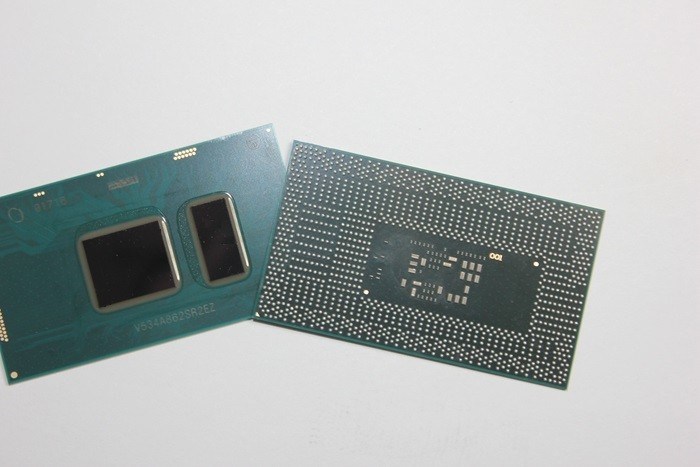

I7-6500U SR2EZ Laptop CPU Processors I7 Sries 4MB Cache , up to 3.1GHz - Notebook CPU

Basic Information
Certification: ORIGINAL PARTS
Model Number: i7-6500U
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: tray, 10cmX10cmX5cm
Delivery Time: 3-5 work days
Payment Terms: T/T, PayPal, Western Union, Escrow and others
Supply Ability: 500pcs
Detail Information
Model NO.: I7-6500U Family Collection: The 6th Core I7 Series Processor
Processor Code: Formerly Skylake Market Segment: Mobile
Status: Launched Launch Date: Q3'15
Lithography: 14nm Use Conditon: Notebook
High Light:

laptop microprocessor

,

laptop chips


Product Description

I7-6500U SR2EZ Laptop CPU Processors I7 Sries 4MB Cache , up to 3.1GHz - Notebook CPU



Core i7-6500U is an ULV (ultra low voltage) dual-core SoC based on the Skylake architecture and has been launched in September 2015. The CPU can be found in ultrabooks as well as normal notebooks. In addition to two CPU cores with Hyper-Threading clocked at 2.5 - 3.1 GHz (2 cores: max. 3.0 GHz), the chip also integrates an HD Graphics 520 GPU and a dual-channel DDR4-2133/DDR3L-1600 memory controller. The SoC is manufactured using a 14 nm process with FinFET transistors.



Processor number i7-6500U

Processor number i7-6500U
Family Core i7 Mobile
Technology (micron) 0.014
Processor speed (GHz) 2.5
L2 cache size (KB) 512
L3 cache size (MB) 4
The number of cores 2
EM64T Supported
HyperThreading technology Supported
Virtualization technology Supported
Enhanced SpeedStep technology Supported
Execute-Disable bit feature Supported



General Information:

Type CPU / Microprocessor
Market segment Mobile
Family

Intel Core i7 Mobile
Model number

i7-6500U
Frequency 2500 MHz
Maximum turbo frequency 3100 MHz (1 core)
3000 MHz (2 cores)
Clock multiplier 25
Package 1356-ball micro-FCBGA
Socket BGA1356
Size 1.65" x 0.94" / 4.2cm x 2.4cm
Introduction date September 1, 2015 (announcement)
September 1, 2015 (availability in Asia)
September 27, 2015 (availability elsewhere)



Architecture Microarchiteture:

Microarchitecture Skylake
Processor core Skylake-U
Core stepping D1 (SR2EZ)
Manufacturing process 0.014 micron
Data width 64 bit
The number of CPU cores 2
The number of threads 4
Floating Point Unit Integrated
Level 1 cache size 2 x 32 KB 8-way set associative instruction caches
2 x 32 KB 8-way set associative data caches
Level 2 cache size 2 x 256 KB 4-way set associative caches
Level 3 cache size 4 MB 16-way set associative shared cache
Physical memory 32 GB
Multiprocessing Not supported
Extensions and Technologies
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSSE3 / Supplemental Streaming SIMD Extensions 3
  • SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
  • AES / Advanced Encryption Standard instructions
  • AVX / Advanced Vector Extensions
  • AVX2 / Advanced Vector Extensions 2.0
  • BMI / BMI1 + BMI2 / Bit Manipulation instructions
  • F16C / 16-bit Floating-Point conversion instructions
  • FMA3 / 3-operand Fused Multiply-Add instructions
  • EM64T / Extended Memory 64 technology / Intel 64
  • NX / XD / Execute disable bit
  • HT / Hyper-Threading technology
  • VT-x / Virtualization technology
  • VT-d / Virtualization for directed I/O
  • TBT 2.0 / Turbo Boost technology 2.0
  • TSX / Transactional Synchronization Extensions
  • MPX / Memory Protection Extensions
  • SGX / Software Guard Extensions
Low power features Enhanced SpeedStep technology



Intergrated Peripherals/Components:

Display controller 3 displays
Integrated graphics GPU Type: HD 520
Graphics tier: GT2
Microarchitecture: Gen 9 LP
Execution units: 24
Base frequency (MHz): 300
Maximum frequency (MHz): 1050
Memory controller The number of controllers: 1
Memory channels: 2
Supported memory: DDR3L-1600, LPDDR3-1866, DDR4-2133
Maximum memory bandwidth (GB/s): 34.1
Other peripherals
  • PCI Express 3.0 interface (12 lanes)
  • SATA controller
  • USB controller
  • USB OTG
  • eMMC 5.0
  • SDXC 3.0
  • Legacy I/O



 Eletrical/Thermal Parameters:



Maximum operating temperature 100°C
Thermal Design Power 15 Watt
