Detail Information

Porcessor Number:	N3350 SR2Z7	Product Collection:	Celeron Processor N Series
Code Name:	Formerly Apollo Lake	Market Segment:	MOBILE
StatusLaunch Date:	Launched	Launch Date:	Q3'16
Lithography:	14nm	Use Conditon:	PC/Client/Tablet
Highlight:	laptop chips , mobile processor laptop

Product Description

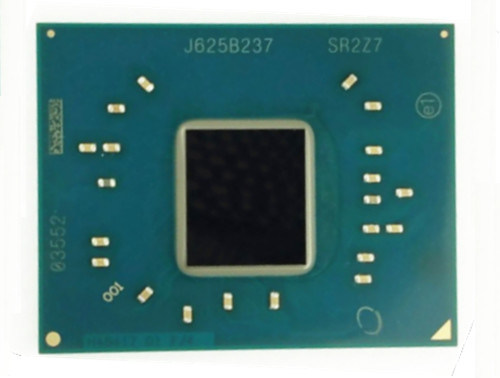

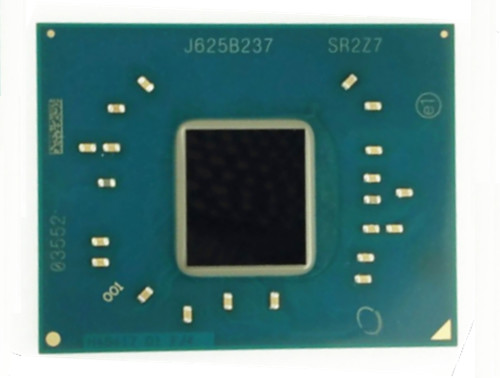

14nm Lithography Laptop CPU Processors Celeron N3350 SR2Z7 2M Cache Up To 2.4 GHz 0

Processor number	N3350
Family	Mobile Celeron
Technology (micron)	0.014
Processor speed (GHz)	1.1
L2 cache size (KB)	2048
The number of cores	2
EM64T	Supported
HyperThreading technology	Not supported
Virtualization technology	Supported
Enhanced SpeedStep technology	Supported
Execute-Disable bit feature	Supported

General information
Type	System-on-a-Chip
Market segment	Mobile
Family	Intel Mobile Celeron (Apollo Lake)
Model number	N3350
SoC part number	FH8066802980002 is an OEM/tray SoC
Frequency	1100 MHz
Maximum turbo frequency	2400 MHz (1 core) 2300 MHz (2 cores)
Low power frequency	800 MHz
Package	1296-ball Flip Chip Ball Grid Array (Type 3)
Socket	BGA1296
Size	1.22" x 0.94" / 3.1cm x 2.4cm
Introduction date	August 30, 2016

Integrated peripherals / components
Display controller	3 displays MIDI-DSI 1.1 / DP 1.2 / HDMI 1.4b / eDP 1.3 DP output supports up to 4096 x 2160 at 60 Hz eDP and HDMI supports up to 3840x2160 at 30 Hz
Integrated graphics	GPU Type: Intel HD 500 Microarchitecture: Gen 9 LP Execution units: 12 Base frequency (MHz): 200 Maximum frequency (MHz): 650
Memory controller	The number of controllers: 1 Memory channels: 2 Channel width (bits): 64 Supported memory: DDR3L-1333, DDR3L-1600, DDR3L-1866, LPDDR3-1333, LPDDR3-1600, LPDDR3-1866, LPDDR4-1600, LPDDR4-2133, LPDDR4-2400 Maximum memory bandwidth (GB/s): 38.4
Other peripherals	PCI Express 2.0 interface (6 lanes) Image Signal Processor HD Audio eMMC and SD-Card interfaces I2S interface I2C controler SPI interface High-Speed UART
Supported interfaces	6x USB 3.0 ports 2x SATA 3 ports

Electrical / Thermal parameters

Maximum operating temperature

105°C

Thermal Design Power

6 Watt

Tag:

Certification:	ORIGINAL PARTS
Model Number:	FH8066802980002 N3350

Minimum Order Quantity:	1piece
Price:	Negotiation

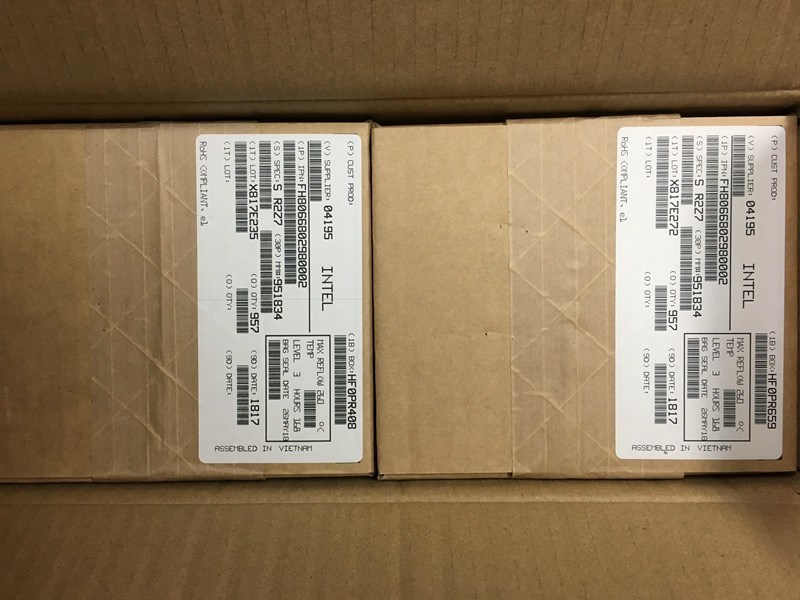

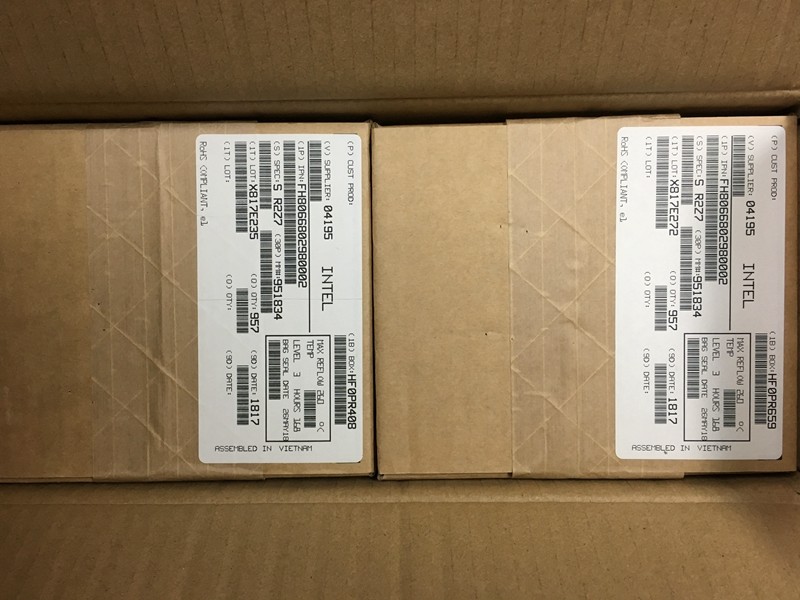

Packaging Details:	tray, 10cmX10cmX5cm
Payment Terms:	T/T, PayPal, Western Union, Escrow and others

14nm Lithography Laptop CPU Processors Celeron N3350 SR2Z7 2M Cache Up To 2.4 GHz

laptop chips
