Quad Core SOC Computer Hardware Processor CPU 2M Cache 1.84 GHz Atom X5-Z8300

China Quad Core SOC Computer Hardware Processor CPU 2M Cache 1.84 GHz Atom X5-Z8300 supplier

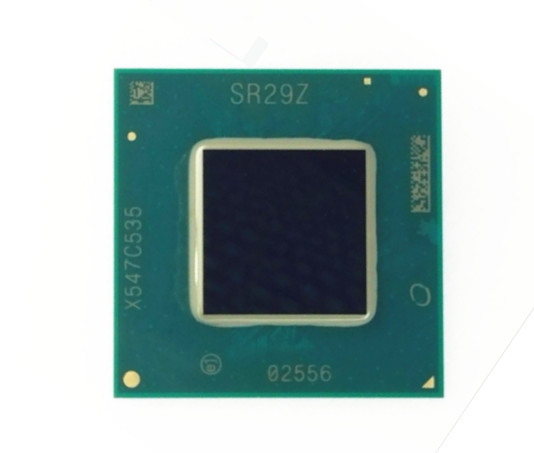

Large Image :  Quad Core SOC Computer Hardware Processor CPU 2M Cache 1.84 GHz Atom X5-Z8300

Product Details:

Place of Origin: ORIGINAL
Brand Name: INTEL
Certification: ORIGINAL PARTS
Model Number: Z8300

Payment & Shipping Terms:

Minimum Order Quantity: 1-10PIECE
Price: Negociation
Packaging Details: Tray, 15cm X 15cm X 10cm
Payment Terms: T/T, PayPal, Western Union, Escrow and others
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Processor No.: X5-Z8300 Product Collection: Atom™ Processor X Series
Code Name: Products Formerly Cherry Trail Vertical Segment: Mobile
Status: Launched Launch Date: Q2'15
Lithography: 14nm Use Condition: Notebook/Tablet

Atom x5-Z8300 Processor Mobile CPU 2M Cache, 1.84 GHz- Notebook Processor



Atom x5-Z8300 is a power efficient quad-core SoC for Windows and Android devices (tablets and convertibles), which has been presented in March 2015. It is clocked at 1.44 - 1.84 GHz and part of the Cherry Trail platform. Thanks to its new 14 nanometer low-power process (P1273) with tri-gate transistors, energy efficiency has been significantly improved over its predecessor Bay Trail-T (e.g. Atom Z3795). In addition to the CPU cores, the SoC offers a DirectX 11.2-capable GPU as well as a LPDDR3 Memory Controller (2x 64 bit, 25.6 GB/s).



Processor number Z8300:

Processor number Z8300
Family Atom x5
Technology (micron) 0.014
Processor speed (GHz) 1.44
L2 cache size (KB) 2048
The number of cores 4
EM64T Supported
HyperThreading technology Not supported
Virtualization technology Supported
Enhanced SpeedStep technology Supported
Execute-Disable bit feature Supported





General information:

Type System-on-a-Chip
Market segment Mobile
Family

Intel Atom x5
Model number Z8300
SoC part number

  • FJ8066401836609 is an OEM/tray SoC
Frequency 1440 MHz
Maximum turbo frequency 1840 MHz (1 or 2 cores)
1600 MHz (3 or 4 cores)
Low power frequency 480 MHz
Package Type 3 BGA
Socket BGA592
Size 0.67" x 0.67" / 1.7cm x 1.7cm
Introduction date March 2, 2015
S-spec numbers
Part number Production processors
  SR29Z
FJ8066401836609 +



Architecture / Microarchitecture:

Microarchitecture Airmont
Platform Cherry Trail
Processor core Cherry Trail
Core stepping C0 (SR29Z)
CPUID 406C4 (SR29Z)
Manufacturing process 0.014 micron
Data width 64 bit
The number of CPU cores 4
The number of threads 4
Floating Point Unit Integrated
Level 1 cache size 4 x 32 KB 8-way set associative instruction caches
4 x 24 KB 6-way set associative write-back data caches
Level 2 cache size 2 x 1 MB 16-way set associative shared caches
Level 3 cache size None
Physical memory 2 GB
Multiprocessing Uniprocessor
Extensions and Technologies
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSSE3 / Supplemental Streaming SIMD Extensions 3
  • SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
  • AES / Advanced Encryption Standard instructions
  • EM64T / Extended Memory 64 technology / Intel 64
  • NX / XD / Execute disable bit
  • VT-x2 / Virtualization technology
  • BPT / Burst Performance technology
  • SMEP / Secure Mode Execution Protection
Low power features
  • Core C1/C1E, C6, C6C and C7 states
  • Package C1/C1E, C6 and C7 states
  • Enhanced SpeedStep technology



Integrated peripherals / components:

Display controller 2 displays
Integrated graphics GPU Type: Intel Gen 8-LP
Execution units: 12
Base frequency (MHz): 200
Maximum frequency (MHz): 500
Memory controller The number of controllers: 1
Memory channels: 1
Channel width (bits): 64
Supported memory: DDR3L-RS 1600
Maximum memory bandwidth (GB/s): 12.8
Other peripherals
  • PCI Express 2.0 interface (1 lane)
  • Video Encode/Decode Unit
  • Image Signal Processor
  • Audio Low Power Engine
  • Trusted Execution Engine
  • USB xHCI controller
  • I2C interface
  • High speed UART
  • eMMC 4.51 interface
  • SDIO controller
  • SPI controller
  • Legacy I/O



Electrical / Thermal parameters:

Minimum/Maximum operating temperature 0°C - 90°C
