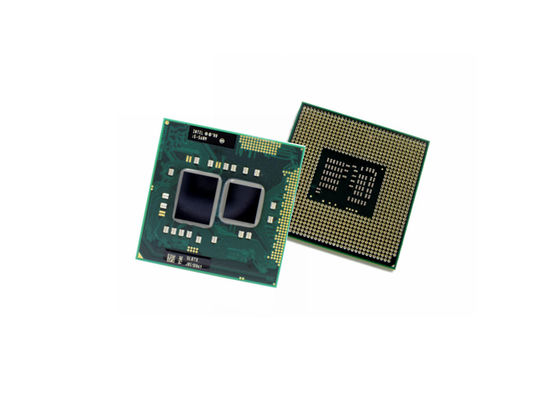

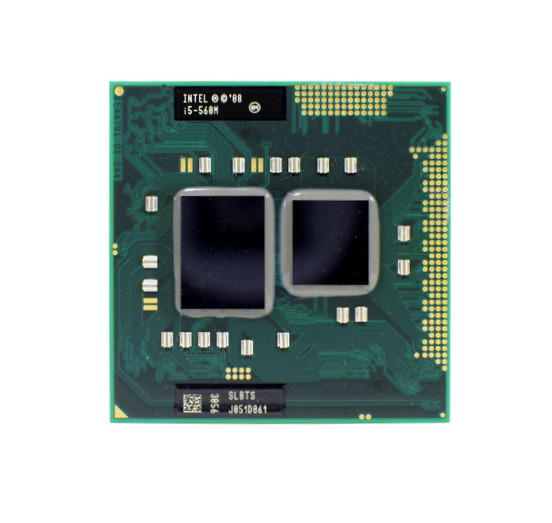

Laptop CPU Processor , CORE I5 Processor , I5-560M SLBTS (3MB Cache , 2.66GHz)-Notebook Cpu

Basic Information
Certification: Original Parts
Model Number: I5-560M SLBTS
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: 10cm X 10cm X 5cm
Delivery Time: 3-5 work days
Payment Terms: T/T, PayPal, Western Union, Escrow and others
Supply Ability: 500-2000pcs per month
Detail Information
Processor Number: I5-560M Family Series: Legacy Core Processors
Code: Products Formerly Arrandale Vertical Segment: Mobile
Status: Discontinued Launch Date: Q3'10
Lithography: 32nm Use Conditon: Notebook
High Light:

laptop microprocessor


laptop chips

Product Description

Laptop CPU Processor , CORE I5 Processor , I5-560M SLBTS (3MB Cache , 2.66GHz)-Notebook Cpu

Core i5-560M is a high end dual core CPU for laptops and clocks (due to the Turbo Mode) from 2.66 to 3.2 GHz. Each core is based on the Nehalem (Westmere) micro-architecture. Hyperthreading enables the Dual Core CPU to handle 4 threads at once (for a better usage of the pipeline). Compared to the Core i7-580M, the 560M a slightly lower maximum Turbo Boost frequency.

A feature of the new Core i5-560M is the integrated graphics card called GMA HD and memory controller. Both are on a separate die that is still manufactured in 45nm whereas the CPU die is already manufactured in the new 32nm process. The Core i5-560M is a high end dual core cpu which should handle all daily work and gaming tasks. Only the quad core i7 CPUs can be noticeably faster at tasks that require four or more threads.



Model conventions:

I5 Processor family: Core i5
  Processor generation: First generation (Nehalem / Westmere)
5 Performance segment: Mid-class dual-core CPUs
60 Feature / Performance identifier
  Additional features: No extra features
M Processor market: Consumer mobile market


Basic Feature:

Processor number i5-560M
Family Core i5 Mobile
Technology (micron) 0.032
Processor speed (GHz) 2.667
L2 cache size (KB) 512
L3 cache size (MB) 3
The number of cores 2
EM64T Supported
HyperThreading technology Supported
Virtualization technology Supported
Enhanced SpeedStep technology Supported
Execute-Disable bit feature Supported


General information:


Type CPU / Microprocessor
Market segment Mobile
Family Intel Core i5 Mobile
Model number i5-560M
Frequency 2667 MHz
Maximum turbo frequency 3200 MHz
Bus speed 2.5 GT/s DMI
Clock multiplier 20
Package 988-pin micro-FCPGA (rPGA988A)
Socket Socket G1 / rPGA988A
Size 1.48" x 1.48" / 3.75cm x 3.75cm
Weight 0.3oz / 8.1g
Introduction date Sep 26, 2010
End-of-Life date Last order date for boxed processors is October 19, 2012
Last shipment date for boxed processors is January 18, 2013
Last order date is April 5, 2012
Last shipment date is October 8, 2012


Architecture / Microarchitecture:


Microarchitecture Westmere
Platform Calpella
Processor core Arrandale
Core stepping K0 (SLBTS)
Manufacturing process 0.032 micron
382 million transistors (CPU die)
177 million transistors (IMC / graphics die)
Die 81mm2 (CPU die)
114mm2 (IMC / graphics die)
Data width 64 bit
The number of CPU cores 2


The number of threads:


Floating Point Unit Integrated
Level 1 cache size 2 x 32 KB 4-way set associative instruction caches
2 x 32 KB 8-way set associative data caches
Level 2 cache size 2 x 256 KB 8-way set associative caches
Level 3 cache size 3 MB 12-way set associative shared cache
Cache latency 4 (L1 cache)
10 (L2 cache)
36 (L3 cache)
Physical memory 8 GB
Multiprocessing Not supported
Extensions and Technologies
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSSE3 / Supplemental Streaming SIMD Extensions 3
  • SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
  • AES / Advanced Encryption Standard instructions
  • EM64T / Extended Memory 64 technology / Intel 64
  • HT / Hyper-Threading technology
  • TBT / Turbo Boost technology
  • NX / XD / Execute disable bit
  • VT-x / Virtualization technology
  • VT-d / Virtualization for directed I/O
  • TXT / Trusted Execution technology
Low power features Enhanced SpeedStep technology


Integrated peripherals / components:


Integrated graphics GPU Type: HD (Westmere)
Base frequency (MHz): 500
Maximum frequency (MHz): 766
The number of supported displays: 2
Memory controller The number of controllers: 1
Memory channels: 2
Channel width (bits): 64
Supported memory: DDR3-800, DDR3-1066
Maximum memory bandwidth (GB/s): 17.1
ECC supported: No
Other peripherals
  • Direct Media Interface
  • PCI Express 2.0 interface


Electrical / Thermal parameters:


Maximum operating temperature 105°C
Thermal Design Power 35 Watt
