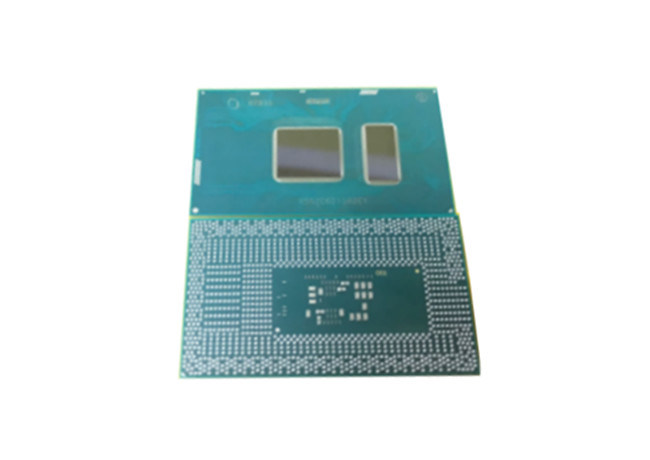

Name: I5-6200U SR2EY Intel Computer Processors Core I5 Series 3MB Cache Up To 2.8GHz
Brand: I5-6200U SR2EY Intel Computer Processors Core I5 Series 3MB Cache Up To 2.8GHz
SKU: i5-6200U SR2EY
Rating: 4.9 (149 reviews)

Detail Information

Processor No.:	I5-6200U	Family:	6th Generation Core I5 Processors
Code Name:	Products Formerly Skylake	Vertical Segment:	Mobile
Status:	Launched	Launch Date:	Q3'15
Lithography:	14nm	Use Conditon:	Notebook/Laptop
Highlight:	laptop microprocessor , laptop chips

Product Description

Laptop CPU Processors I5-6200U SR2EY Core I5 Series (3MB Cache,up to 2.8GHz ) - Notebook Processor

Core i5-6200U is an ULV (ultra low voltage) dual-core SoC based on the Skylake architecture and has been launched in September 2015. The CPU can be found in ultrabooks as well as normal notebooks. In addition to two CPU cores with Hyper-Threading clocked at 2.3 - 2.8 GHz (2 cores: max. 2.7 GHz), the chip also integrates an HD Graphics 520 GPU and a dual-channel DDR4-2133/DDR3L-1600 memory controller. The SoC is manufactured using a 14 nm process with FinFET transistors.

Processor number i5-6200U

Processor number	i5-6200U
Family	Core i5 Mobile
Technology (micron)	0.014
Processor speed (GHz)	2.3
L2 cache size (KB)	512
L3 cache size (MB)	3
The number of cores	2
EM64T	Supported
HyperThreading technology	Supported
Virtualization technology	Supported
Enhanced SpeedStep technology	Supported
Execute-Disable bit feature	Supported

General Information:

Type	CPU / Microprocessor
Market segment	Mobile
Family	Intel Core i5 Mobile
Model number	i5-6200U
CPU part number	· FJ8066201930409 is an OEM/tray microprocessor
Frequency	2300 MHz
Maximum turbo frequency	2800 MHz (1 core) 2700 MHz (2 cores)
Clock multiplier	23
Package	1356-ball micro-FCBGA
Socket	BGA1356
Size	1.65" x 0.94" / 4.2cm x 2.4cm
Introduction date	September 1, 2015 (announcement) September 1, 2015 (availability in Asia) September 27, 2015 (availability elsewhere)

Architecture Microarchiteture:

Microarchitecture	Skylake
Processor core	Skylake-U
Core stepping	D1 (SR2EY)
Manufacturing process	0.014 micron
Data width	64 bit
The number of CPU cores	2
The number of threads	4
Floating Point Unit	Integrated
Level 1 cache size	2 x 32 KB 8-way set associative instruction caches 2 x 32 KB 8-way set associative data caches
Level 2 cache size	2 x 256 KB 4-way set associative caches
Level 3 cache size	3 MB 12-way set associative shared cache
Physical memory	32 GB
Multiprocessing	Not supported
Extensions and Technologies	· MMX instructions · SSE / Streaming SIMD Extensions · SSE2 / Streaming SIMD Extensions 2 · SSE3 / Streaming SIMD Extensions 3 · SSSE3 / Supplemental Streaming SIMD Extensions 3 · SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 · AES / Advanced Encryption Standard instructions · AVX / Advanced Vector Extensions · AVX2 / Advanced Vector Extensions 2.0 · BMI / BMI1 + BMI2 / Bit Manipulation instructions · F16C / 16-bit Floating-Point conversion instructions · FMA3 / 3-operand Fused Multiply-Add instructions · EM64T / Extended Memory 64 technology / Intel 64 · NX / XD / Execute disable bit · HT / Hyper-Threading technology · VT-x / Virtualization technology · VT-d / Virtualization for directed I/O · TBT 2.0 / Turbo Boost technology 2.0 · TSX / Transactional Synchronization Extensions · MPX / Memory Protection Extensions · SGX / Software Guard Extensions
Low power features	Enhanced SpeedStep technology

Integrated peripherals / components:

Display controller	3 displays
Integrated graphics	GPU Type: HD 520 Graphics tier: GT2 Microarchitecture: Gen 9 LP Execution units: 24 Base frequency (MHz): 300 Maximum frequency (MHz): 1000
Memory controller	The number of controllers: 1 Memory channels: 2 Supported memory: DDR3L-1600, LPDDR3-1866, DDR4-2133 Maximum memory bandwidth (GB/s): 34.1
Other peripherals	· PCI Express 3.0 interface (12 lanes) · SATA controller · USB controller · USB OTG · eMMC 5.0 · SDXC 3.0 · Legacy I/O

Electrical / Thermal parameters:

Maximum operating temperature	100°C
Thermal Design Power	15Watt

Tag:

Certification:	ORIGINAL PARTS
Model Number:	i5-6200U SR2EY

Minimum Order Quantity:	1 piece
Price:	Negotiation
Packaging Details:	tray, 10cmX10cmX5cm
Delivery Time:	3-5 work days
Payment Terms:	T/T, PayPal, Western Union, Escrow and others
Supply Ability:	1000pcs
