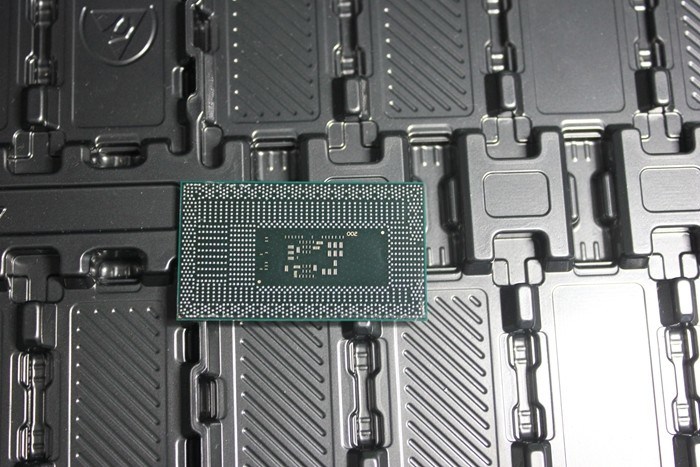

I5-7200U SR2ZU Intel Core I5 Microprocessor 3M Cache Up To 3.1GHz 7th Generation

Basic Information
Certification: ORIGINAL PARTS
Model Number: I5-7200U SR2ZU
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Tray, 10cm X 10cm X 5cm
Delivery Time: 3-5 work days
Payment Terms: T/T, PayPal, Western Union, Escrow and others
Supply Ability: 1000pcs
Detail Information
Module Number: I5-7200U Family: 7th Generation Core I5 Processors
CodeName: Products Formerly Kaby Lake Market Segment: Mobile
Status: Launched Launch Date: Q3'16
Lithography: 14nm Use Condition: Notebook
High Light:

mobile core processor

,

mobile microprocessor


Product Description

Mobile Device Processors I5-7200U SR2ZU ( 3M Cache, up to 3.1GHz) - CORE I5 Processor Series Mobile /Notebook CPU

The Core  i5-7200U is a dual-core processor of the Kaby Lakearchitecture. It offers two CPU cores clocked at 2.5 - 3.1 GHz and integrates HyperThreading to work with up to 4 threads at once. The architectural differences are rather small compared to the Skylake generation, therefore the performance per MHz is very similar. The SoC includes a dual channel DDR4 memory controller and Intel HD Graphics 620 graphics card (clocked at 300 - 1000 MHz). It is manufactured in an improved 14nm FinFET process at Intel. Compared to the old Skylake based Core i5-6200U, the i5-7200U offers a 300 MHz higher clock speed.

Processor number i5-7200U

Processor number i5-7200U
Family Core i5 Mobile
Technology (micron) 0.014
Processor speed (GHz) 2.5
L2 cache size (KB) 512
L3 cache size (MB) 3
The number of cores 2
EM64T Supported
HyperThreading technology Supported
Virtualization technology Supported
Enhanced SpeedStep technology Supported
Execute-Disable bit feature Supported



General Information:

Type CPU / Microprocessor
Market segment Mobile
Family

Intel Core i5 Mobile
Model number

i5-7200U
Frequency 2500 MHz
Maximum turbo frequency 3100 MHz (1 or 2 cores)
Clock multiplier 25
Package 1356-ball BGA
Socket BGA1356
Size 1.65" x 0.94" / 4.2cm x 2.4cm
Introduction date August 30, 2016

Architecture / Microarchitecture:
Microarchitecture Kaby Lake
Processor core Kaby Lake-U
Core stepping H0 (SR2ZU, SR342)
Manufacturing process 0.014 micron
Data width 64 bit
The number of CPU cores 2
The number of threads 4
Floating Point Unit Integrated
Level 1 cache size 2 x 32 KB 8-way set associative instruction caches
2 x 32 KB 8-way set associative data caches
Level 2 cache size 2 x 256 KB 4-way set associative caches
Level 3 cache size 3 MB 12-way set associative shared cache
Physical memory 32 GB
Multiprocessing Not supported
Extensions and Technologies
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSSE3 / Supplemental Streaming SIMD Extensions 3
  • SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
  • AES / Advanced Encryption Standard instructions
  • AVX / Advanced Vector Extensions
  • AVX2 / Advanced Vector Extensions 2.0
  • BMI / BMI1 + BMI2 / Bit Manipulation instructions
  • F16C / 16-bit Floating-Point conversion instructions
  • FMA3 / 3-operand Fused Multiply-Add instructions
  • EM64T / Extended Memory 64 technology / Intel 64
  • NX / XD / Execute disable bit
  • HT / Hyper-Threading technology
  • VT-x / Virtualization technology
  • VT-d / Virtualization for directed I/O
  • TBT 2.0 / Turbo Boost technology 2.0
  • MPX / Memory Protection Extensions
  • SGX / Software Guard Extensions
  • TSX / Transactional Synchronization Extensions [1]
Low power features Enhanced SpeedStep technology




Integrated peripherals / components:



Display controller 3 displays
Integrated graphics GPU Type: Intel HD 620
Microarchitecture: Gen 9 LP
Base frequency (MHz): 300
Maximum frequency (MHz): 1000
Memory controller The number of controllers: 1
Memory channels: 2
Supported memory: DDR3L-1600, LPDDR3-1866, DDR4-2133
Maximum memory bandwidth (GB/s): 34.1
Other peripherals PCI Express 3.0 interface (12 lanes)


Electrical / Thermal parameters:

Maximum operating temperature 100°C
Thermal Design Power 15 Watt
