Detail Information

Processorl NO.:	I7-7820HQ	Family:	The 7th Core I7 Series Processor
Code Name:	Products Formerly Kaby Lake	Vertical Segment:	Mobile
Status:	Launched	Launch Date:	Q1'17
Lithography:	14nm	Use Conditon:	Notebook
High Light:	computer cpu processor , multi core processor

Product Description

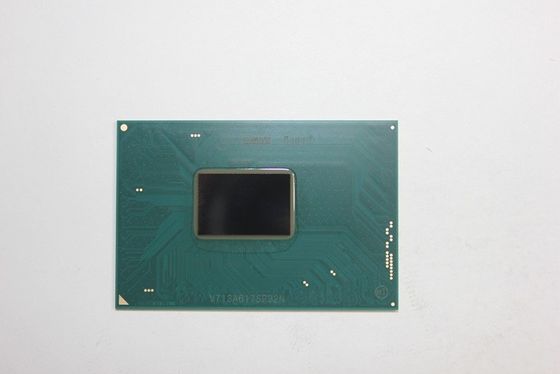

Core I7-7820HQ SR32PN , CPU Procesor Chip I7 Series ( 8MB Cache , up to 3.9GHz ) - Notebook CPU

Core i7-7820HQ is a fast quad-core processor for notebooks based on the Kaby Lake architecture and was announced in January 2017. It is the second fastest model of the consumer series at the time of the announcement. Only the i7-7920HQ and Xeon E3-1535M v6 are faster. Besides four cores including Hyper-Threading support running at 2.9 - 3.9 GHz (4 cores up to 3.5 GHz, 2 cores up to 3.7 GHz), the processor is also equipped with the HD Graphics 630 GPU as well as a dual-channel memory controller (DDR3L-1600/DDR4-2400). It is manufactured in a 14nm process with FinFET transistors.

Processor number i7-7820HQ

Processor number	i7-7820HQ
Family	Core i7 Mobile
Technology (micron)	0.014
Processor speed (GHz)	2.9
L2 cache size (KB)	1024
L3 cache size (MB)	8
The number of cores4	4
EM64T	Supported
HyperThreading technology	Supported
Virtualization technology	Supported
Enhanced SpeedStep technology	Supported
Execute-Disable bit feature	Supported

General Information:

Type	CPU / Microprocessor
Market segment	Mobile
Family	Intel Core i7 Mobile
Model number	i7-7820HQ
Frequency	2900 MHz
Maximum turbo frequency	3900 MHz (1 core) 3700 MHz (2 cores) 3500 MHz (3 or 4 cores)
Bus speed	8 GT/s DMI
Clock multiplier	29
Package	1440-ball micro-FCBGA
Socket	BGA1440
Size	1.65" x 1.1" / 4.2cm x 2.8cm
Introduction date	January 3, 2017

Architecture Microarchiteture:

Microarchitecture	Kaby Lake
Processor core	Kaby Lake-H
Core stepping	B0 (SR32N)
Manufacturing process	0.014 micron
Data width	64 bit
The number of CPU cores	4
The number of threads	8
Floating Point Unit	Integrated
Level 1 cache size	4 x 32 KB 8-way set associative instruction caches 4 x 32 KB 8-way set associative data caches
Level 2 cache size	4 x 256 KB 4-way set associative caches
Level 3 cache size	8 MB 16-way set associative shared cache
Physical memory	64 GB
Multiprocessing	Not supported
Extensions and Technologies	MMX instructions SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 SSE3 / Streaming SIMD Extensions 3 SSSE3 / Supplemental Streaming SIMD Extensions 3 SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 AES / Advanced Encryption Standard instructions AVX / Advanced Vector Extensions AVX2 / Advanced Vector Extensions 2.0 BMI / BMI1 + BMI2 / Bit Manipulation instructions F16C / 16-bit Floating-Point conversion instructions FMA3 / 3-operand Fused Multiply-Add instructions EM64T / Extended Memory 64 technology / Intel 64 NX / XD / Execute disable bit HT / Hyper-Threading technology VT-x / Virtualization technology VT-d / Virtualization for directed I/O TBT 2.0 / Turbo Boost technology 2.0 TXT / Trusted Execution technology TSX / Transactional Synchronization Extensions MPX / Memory Protection Extensions SGX / Software Guard Extensions SMAP / Supervisor Mode Access Prevention SMEP / Secure Mode Execution Protection
Low power features	Enhanced SpeedStep technology

Intergrated Peripherals/Components:

Display controller	3 displays
Integrated graphics	GPU Type: Intel HD 630 Microarchitecture: Gen 9 LP Base frequency (MHz): 350 Maximum frequency (MHz): 1100
Memory controller	The number of controllers: 1 Memory channels: 2 Supported memory: DDR3L-1600, LPDDR3-2133, DDR4-2400 Maximum memory bandwidth (GB/s): 34.1
Other peripherals	Direct Media Interface 3.0 PCI Express 3.0 interface (16 lanes)

Eletrical/Thermal Parameters:

Maximum operating temperature	100°C
Thermal Design Power	45 Watt

Tag:

Certification:	ORIGINAL PARTS
Model Number:	I7-7820HQ SR32N

Minimum Order Quantity:	1 piece
Price:	Negotiation
Packaging Details:	tray, 10cmX10cmX5cm
Delivery Time:	3-5 work days
Payment Terms:	T/T, PayPal, Western Union, Escrow and others
Supply Ability:	500pcs

Core I7-7820HQ SR32N , CPU Procesor Chip I7 Series ( 8MB Cache , up to 3.9GHz ) - Notebook CPU
