Module Number: | I5-4302Y | Family: | 4th Generation Core I5 Processors |
---|---|---|---|
CodeName: | Products Formerly Haswell | Market Segment: | Mobile |
Status: | Launched | Launch Date: | Q3'13 |
Lithography: | 22nm | Use Condition: | Notebook |
Highlight: | computer cpu processor,computer hardware processor |

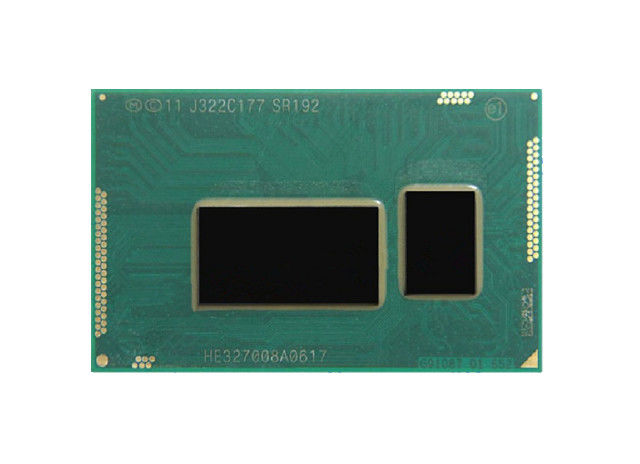

CPU Processor Chip , I5-4300Y SR192 ( 3M Cache, up to 2.30 GHz) - CORE I5 Processor Series Notebook CPU
The Core i5-4300Y is an ULV (ultra low voltage) dual-core processor for ultrabooks and tablets which has been presented in Q3/2013. It is based on the Haswell architecture and manufactured in 22nm. Due to Hyperthreading, the two cores can handle up to four threads in parallel, leading to better utilization of the CPU. Each core offers a base speed of 1.6 GHz, but can dynamically increase clock rates with Turbo Boost up to 2.3 GHz.
Processor number i5-4300Y
Processor number | i5-4300Y |
Family | Core i5 Mobile |
Technology (micron) | 0.022 |
Processor speed (GHz) | 1.6 |
L2 cache size (KB) | 512 |
L3 cache size (MB) | 3 |
The number of cores | 2 |
EM64T | Supported |
HyperThreading technology | Supported |
Virtualization technology | Supported |
Enhanced SpeedStep technology | Supported |
Execute-Disable bit feature | Supported |
General Information:
Type | CPU / Microprocessor |
Market segment | Mobile |
Family | Intel Core i5 Mobile |
Model number | i5-4300Y |
CPU part number | · CL8064701558601 is an OEM/tray microprocessor |
Frequency | 1600 MHz |
Maximum turbo frequency | 2300 MHz (1 core) 2000 MHz (2 cores) |
Bus speed | 5 GT/s DMI |
Clock multiplier | 16 |
Package | 1168-ball micro-FCBGA package (FCBGA1168) |
Socket | BGA1168 |
Size | 1.57" x 0.94" / 4cm x 2.4cm |
Introduction date | September 1, 2013 |
Architecture / Microarchitecture:
Microarchitecture | Haswell |
Platform | Shark Bay |
Processor core | Haswell |
Core stepping | D0 (SR192) |
Manufacturing process | 0.022 micron |
Data width | 64 bit |
The number of CPU cores | 2 |
The number of threads | 4 |
Floating Point Unit | Integrated |
Level 1 cache size | 2 x 32 KB 8-way set associative instruction caches 2 x 32 KB 8-way set associative data caches |
Level 2 cache size | 2 x 256 KB 8-way set associative caches |
Level 3 cache size | 3 MB 12-way set associative shared cache |
Physical memory | 16 GB |
Multiprocessing | Uniprocessor |
Extensions and Technologies |
· MMX instructions · SSE / Streaming SIMD Extensions · SSE2 / Streaming SIMD Extensions 2 · SSE3 / Streaming SIMD Extensions 3 · SSSE3 / Supplemental Streaming SIMD Extensions 3 · SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 · AES / Advanced Encryption Standard instructions · AVX / Advanced Vector Extensions · AVX2 / Advanced Vector Extensions 2.0 · BMI / BMI1 + BMI2 / Bit Manipulation instructions · F16C / 16-bit Floating-Point conversion instructions · FMA3 / 3-operand Fused Multiply-Add instructions · EM64T / Extended Memory 64 technology / Intel 64 · NX / XD / Execute disable bit · HT / Hyper-Threading technology · TBT 2.0 / Turbo Boost technology 2.0 · VT-x / Virtualization technology · VT-d / Virtualization for directed I/O · TXT / Trusted Execution technology · TSX / Transactional Synchronization Extensions |
Low power features | Enhanced SpeedStep technology |
Integrated peripherals / components:
Integrated graphics | GPU Type: HD 4200 Graphics tier: GT2 Microarchitecture: Gen 7.5 Execution units: 20 [1] Base frequency (MHz): 200 Maximum frequency (MHz): 850 The number of supported displays: 3 |
Memory controller | The number of controllers: 1 Memory channels: 2 Supported memory: DDR3L-1333, DDR3L-1600, LPDDR3-1333, LPDDR3-1600 Maximum memory bandwidth (GB/s): 25.6 |
Other peripherals |
· Direct Media Interface 2.0 · PCI Express 2.0 interface |
Electrical / Thermal parameters:
Maximum operating temperature | 100°C |
Thermal Design Power | 11.5 Watt |
