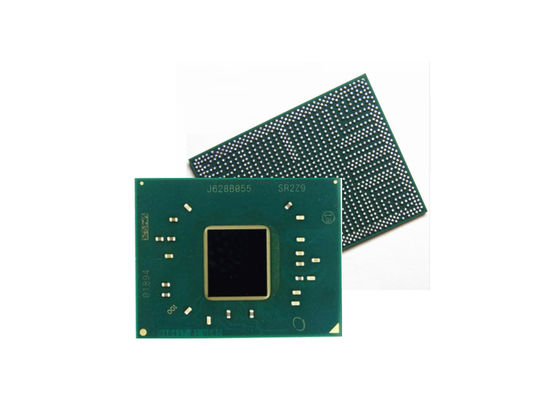

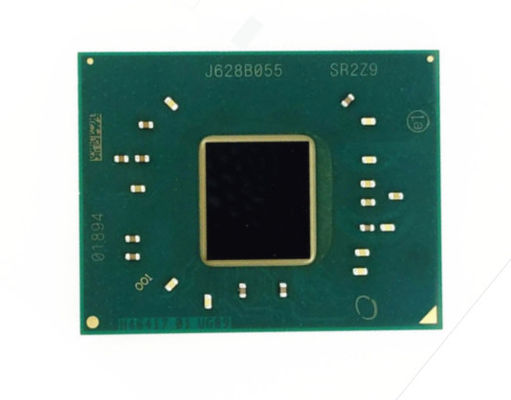

4 Cores Intel Computer Chips Celeron Processor J3455 Desktop CPU 2M Cache 2.3 GHz

Basic Information
Certification: ORIGINAL PARTS
Model Number: J3455
Minimum Order Quantity: 1 piece
Price: Negociation
Packaging Details: Tray, 15cm X 15cm X 10cm
Payment Terms: T/T, PayPal, Western Union, Escrow and others
Supply Ability: 500pcs/month
Detail Information
Processor No.: J3455 Product Collection: Intel Celeron Processor J Series
Code Name: Products Formerly Apollo Lake Vertical Segment: Desktop
Status: Launched Launch Date: Q3'16
Lithography: 14nm Use Condition: Desktop/Industrail PC
High Light:

computer cpu processor


multi core processor

Product Description

Celeron Processor J3455 Desktop CPU 2M Cache, up to 2.3 GHz


4 Cores Intel Computer Chips Celeron Processor J3455 Desktop CPU 2M Cache 2.3 GHz 0


Celeron J3455 is a quad-core 64-bit x86 desktop microprocessor introduced by Intel in 2016. The processor is based on Goldmont microarchitecture and is manufactured on a 14 nm process. The chip operates at 1.5 GHz with burst frequency of 2.3 GHz and has a TDP of 10 W. This MPU incorporates Intel's HD Graphics 500 GPU operating at 250 MHz with a burst frequency of 750 MHz.



Processor number J3455:

Processor number J3455
Family Celeron
Technology (micron) 0.014
Processor speed (GHz) 1.5
L2 cache size (KB) 2048
The number of cores 4
EM64T Supported
HyperThreading technology Not supported
Virtualization technology Supported
Enhanced SpeedStep technology Supported
Execute-Disable bit feature Supported



General information:

Type System-on-a-Chip
Market segment Desktop
Intel Celeron (Apollo Lake)
Model number J3455
SoC part number
  • FH8066802986102 is an OEM/tray SoC
Frequency 1500 MHz
Maximum turbo frequency 2300 MHz (1 core)
2200 MHz (2 or more cores)
Low power frequency 800 MHz
Package 1296-ball Flip Chip Ball Grid Array (Type 3)
Socket BGA1296
Size 1.22" x 0.94" / 3.1cm x 2.4cm
Introduction date August 30, 2016
Price at introduction
S-spec numbers
Part number Production processors
FH8066802986102 +


Architecture / Microarchitecture:

Microarchitecture Goldmont
Processor core Apollo Lake
Core stepping B1 (SR2Z9)
Manufacturing process 0.014 micron
Data width 64 bit
The number of CPU cores 4
The number of threads 4
Floating Point Unit Integrated
Level 1 cache size 4 x 32 KB 8-way set associative instruction caches
4 x 24 KB 6-way set associative data caches
Level 2 cache size 2 x 1 MB 16-way set associative shared caches
Level 3 cache size None
Physical memory 8 GB
Multiprocessing Uniprocessor
Extensions and Technologies
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSSE3 / Supplemental Streaming SIMD Extensions 3
  • SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
  • AES / Advanced Encryption Standard instructions
  • SHA / Secure Hash Algorithm extensions
  • EM64T / Extended Memory 64 technology / Intel 64
  • VT-x / Virtualization technology
  • VT-d / Virtualization for directed I/O
  • BPT / Burst Performance technology
Security Features
  • NX / XD / Execute disable bit
  • MPX / Memory Protection Extensions
  • SMAP / Supervisor Mode Access Prevention
  • SMEP / Secure Mode Execution Protection
Low power features
  • Core CC1 and CC6 states
  • Module MC0 and MC7 states
  • System S0ix, S3, S4 and S4 states
  • Enhanced SpeedStep technology


Integrated peripherals / components:

Display controller
  • 3 displays
  • MIDI-DSI 1.1 / DP 1.2 / HDMI 1.4b / eDP 1.3
  • DP output supports up to 4096 x 2160 at 60 Hz
  • eDP and HDMI supports up to 3840x2160 at 30 Hz
Integrated graphics GPU Type: Intel HD 500
Microarchitecture: Gen 9 LP
Execution units: 12
Base frequency (MHz): 250
Maximum frequency (MHz): 750
Memory controller The number of controllers: 1
Memory channels: 2
Channel width (bits): 64
Supported memory: DDR3L-1333, DDR3L-1600, DDR3L-1866, LPDDR3-1333, LPDDR3-1600, LPDDR3-1866, LPDDR4-1600, LPDDR4-2133, LPDDR4-2400
Maximum memory bandwidth (GB/s): 38.4
Other peripherals
  • PCI Express 2.0 interface (6 lanes)
  • Image Signal Processor
  • HD Audio
  • eMMC and SD-Card interfaces
  • I2S interface
  • I2C controler
  • SPI interface
  • High-Speed UART
Supported interfaces
  • 6x USB 3.0 ports
  • 2x SATA 3 ports


Electrical / Thermal parameters:


Maximum operating temperature 105°C
Thermal Design Power 10 Watt
