| Certification: | ORIGINAL PARTS |
|---|---|
| Model Number: | I5-4210U SR1EF |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiation |
| Packaging Details: | Tray, 10cm X 10cm X 5cm |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, PayPal, Western Union, Escrow and others |
| Supply Ability: | 1000pcs |
| Processor Number: | I5-4210U | Product Collection: | 4th Generation Core I5 Processors |
|---|---|---|---|
| CodeName: | Products Formerly Haswell | Market Segment: | Mobile |
| Status: | Launched | Launch Date: | Q2'14 |
| Lithography: | 22nm | Use Condition: | Notebook/Mobile Device |
| High Light: | computer cpu processor,multi core processor |
||

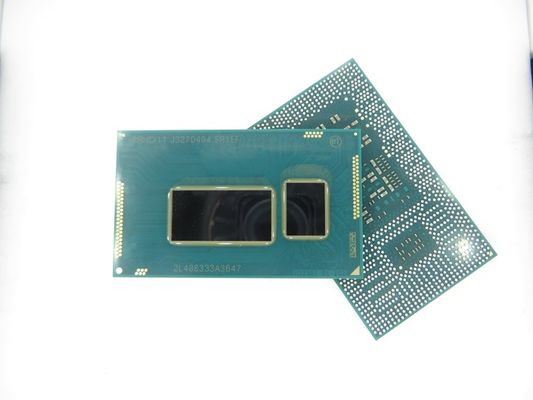

CPU Processor Chip I5-4210U SR1EF ( 3M Cache, up to 2.7GHz) - CORE I5 Processor Series Notebook CPU
The Core i5-4210U is an ULV (ultra low voltage) dual-core processor for ultrabooks launched in Q2 2014. It is based on the Haswell architecture and is manufactured in 22nm. Due to Hyper-Threading, the two cores can handle up to four threads in parallel, leading to better utilization of the CPU. Each core offers a base speed of 1.7 GHz, but can dynamically increase clock rates with Turbo Boost up to 2.7 GHz for 1 active core or 2.4 GHz for 2 active cores. That's exactly 100 MHz more than the i5-4200U.
| I5 | Processor family: Core i5 Mobile | |
| - | ||
| 4 | Processor generation: 4rd generation (Haswell) | |
| 2 | Performance segment: Mid-class dual-core processors | |
| 10 | Feature / Performance identifier | |
| U | Additional features and market: Ultra low power CPU (15 Watt or 28 Watt) | |
| Processor number | i5-4210U |
| Family | Core i5 Mobile |
| Technology (micron) | 0.022 |
| Processor speed (GHz) | 1.7 |
| L2 cache size (KB) | 512 |
| L3 cache size (MB) | 3 |
| The number of cores | 2 |
| EM64T | Supported |
| HyperThreading technology | Supported |
| Virtualization technology | Supported |
| Enhanced SpeedStep technology | Supported |
| Execute-Disable bit feature | Supported |
General Information:
| Type | CPU / Microprocessor |
| Market segment | Mobile |
| Family | |
| Model number | |
| Frequency | 1700 MHz |
| Maximum turbo frequency | 2700 MHz (1 core) 2400 MHz (2 cores) |
| Bus speed | 5 GT/s DMI |
| Clock multiplier | 17 |
| Package | 1168-ball micro-FCBGA package (FCBGA1168) |
| Socket | BGA1168 |
| Size | 1.57" x 0.94" / 4cm x 2.4cm |
| Introduction date | April 14, 2014 |
| End-of-Life date | Last order date for tray processors is July 1, 2016 Last shipment date for tray processors is January 6, 2017 |
Architecture / Microarchitecture:
| Microarchitecture | Haswell |
| Platform | Shark Bay |
| Processor core | Haswell |
| Core stepping | D0 (SR1EF) |
| Manufacturing process | 0.022 micron |
| Data width | 64 bit |
| The number of CPU cores | 2 |
| The number of threads | 4 |
| Floating Point Unit | Integrated |
| Level 1 cache size | 2 x 32 KB 8-way set associative instruction caches 2 x 32 KB 8-way set associative data caches |
| Level 2 cache size | 2 x 256 KB 8-way set associative caches |
| Level 3 cache size | 3 MB 12-way set associative shared cache |
| Physical memory | 16 GB |
| Multiprocessing | Uniprocessor |
| Extensions and Technologies |
|
| Security Features |
|
| Low power features | Enhanced SpeedStep technology |
Integrated peripherals / components:
| ntegrated graphics | GPU Type: HD 4400 Graphics tier: GT2 Microarchitecture: Gen 7.5 Execution units: 20 Base frequency (MHz): 200 Maximum frequency (MHz): 1000 The number of supported displays: 3 |
| Memory controller | The number of controllers: 1 Memory channels: 2 Supported memory: DDR3L-1333, DDR3L-1600, LPDDR3-1333, LPDDR3-1600 Maximum memory bandwidth (GB/s): 25.6 |
| Other peripherals |
|
Electrical / Thermal parameters:
| Maximum operating temperature | 100°C |
| Thermal Design Power | 15 Watt |
