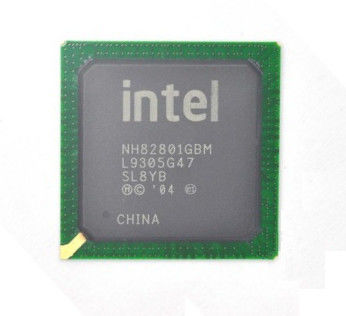

Computer Laptop Motherboard Chipset NH82801GBM SL8YB I/O Controller Interface IC 10 I/Os SPI USB MBGA-652

Name: Computer Laptop Motherboard Chipset NH82801GBM SL8YB I/O Controller Interface IC 10 I/Os SPI USB MBGA-652
Brand: Computer Laptop Motherboard Chipset NH82801GBM SL8YB I/O Controller Interface IC 10 I/Os SPI USB MBGA-652
SKU: NH82801GBM SL8YB
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (139 reviews)

Basic Information

Certification:	ORIGINAL PARTS
Model Number:	NH82801GBM SL8YB

Minimum Order Quantity:	1-10pcs
Price:	Negociation
Packaging Details:	Tray, 15cm X 15cm X 10cm
Payment Terms:	T/T, PayPal, Western Union, Escrow and others
Supply Ability:	Tray, 15cm X 15cm X 10cm

Get Best Price Contact Now

Detail Information

Chipset No.:	NH82801GBM	Product Collection:	Intel 940 Series Chipsets
Code Name:	Products Formerly ICH7	Status:	Launched
Launch Date:	Q1'06	TDP:	3.3 W
Package:	MBGA-652	Vertical Segment:	Mobile Chipset
High Light:	north and south bridge chipset , pc chipsets

Product Description

Computer Chipset NH82801GBM SL8YB I/O Controller Interface IC 10 I/Os SPI USB mBGA-652

Technical Specifications:

Physical
Case/Package	BGA
Contact Plating	Copper , Tin , Silver
Mount	Surface Mount
Number of Pins	652
Technical
Max Operating Temperature	108 °C
Number of Ports	4
Operating Supply Voltage	5 V
Termination	SMD/SMT

Essentials

Product CollectionIntel® 940 Series Chipsets
Code NameProducts formerly ICH7
StatusLaunched
Launch DateQ1'06
TDP3.3 W
Recommended Customer PriceN/A

Supplemental Information

Embedded Options AvailableYes
DatasheetView now

Expansion Options

PCI Support6 (32/33)

I/O Specifications

USB RevisionUSB 2.0
# of USB Ports8
Total # of SATA Ports2
Integrated LAN10/100
Integrated IDE1 Channel

Package Specifications

T_CASE99°C-108°C
Package Size31mm x 31mm

Advanced Technologies

Intel® Virtualization Technology for Directed I/O (VT-d)^‡No
Intel® ME Firmware Versionn/a
Intel® Quick Resume TechnologyNo
Intel® Quiet System TechnologyNo
Intel® HD Audio TechnologyYes
Intel® AC97 TechnologyYes
Intel® Matrix Storage TechnologyNo
