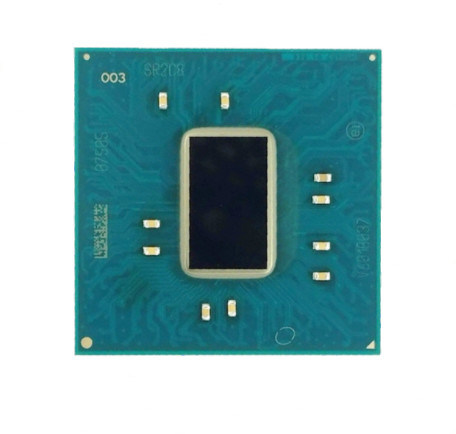

Name: Non Embedded GL82H170 Desktop Chipset 8 GT/S DMI3 Bus Speed 6W TDP For Computer
Brand: Non Embedded GL82H170 Desktop Chipset 8 GT/S DMI3 Bus Speed 6W TDP For Computer
SKU: GL82H170
Price: 1.00 USD
Availability: InStock
Rating: 5 (165 reviews)

Detail Information

Chipset No.:	GL82H170	Product Collection:	Intel 100 Series Chipsets
Code Name:	Products Formerly Skylake	Vertical Segment:	Desktop
Status:	Launched	Launch Date:	Q3'15
Bus Speed:	8 GT/s DMI3	Lithography:	22nm
TDP:	6 W
High Light:	pc chipsets , computer chipset

Product Description

Chipset GL82H170 Desktop Chipsets for Computer

Basic Feature:

Product:Desktop Chipsets

Type:PCH

Code Name:Skylake

Embedded Options:Non-Embedded

PCIe Revision:3.0

PCIe Configurations:16 Lanes, x1, x2, x4

Integrated Graphics:Without Graphics

Number of USB Ports:14

Number of SATA Ports:6

TDP - Max:6 W

Packaging:Reel

Length:23 mm

Width:23 mm

Supplemental Information

Embedded Options Available:No
DatasheetView now

Memory Specifications

# of DIMMs per channel:2

Processor Graphics

# of Displays Supported :3

Expansion Options

PCI Support:No
PCI Express Revision:3.0
PCI Express Configurations :x1, x2, x4
Max # of PCI Express Lanes:16

I/O Specifications

# of USB Ports:14
USB Revision:3.0/2.0
USB 3.0:Up to 8
USB 2.0:Up to 14
Max # of SATA 6.0 Gb/s Ports:6
RAID Configuration:PCIe* 0,1,5 / SATA 0,1,5,10
Integrated LAN:Integrated MAC
Supported Processor PCI Express Port Configurations:1x16

Package Specifications

Package Size:23mm x 23mm

Advanced Technologies

Intel Optane™ Memory Supported :No
Intel Virtualization Technology for Directed I/O (VT-d):Yes
Intel vPro™ Platform Eligibility :No
Intel ME Firmware Version:11
Intel HD Audio Technology:Yes
Intel Rapid Storage Technology:Yes
Intel Rapid Storage Technology enterprise:No
Intel Standard Manageability:No
Intel Smart Response Technology:Yes
Intel Stable Image Platform Program (SIPP):No
Intel Rapid Storage Technology for PCI Storage:Yes
Intel Smart Sound Technology:Yes
Intel Platform Trust Technology (Intel® PTT):Yes

Security & Reliability

Intel Trusted Execution Technology :No
Intel Boot Guard:Yes

Tag:

Certification:	ORIGINAL PARTS
Model Number:	GL82H170

Minimum Order Quantity:	1-10 PIECE
Price:	Negociation
Packaging Details:	Tray, 15cm X 15cm X 10cm
Payment Terms:	T/T, PayPal, Western Union, Escrow and others
Supply Ability:	500pcs/month
