Name: DH82HM87 SR17D Chipset Northbridge And Southbridge HM87 FCBGA-695 Launched Status
Brand: DH82HM87 SR17D Chipset Northbridge And Southbridge HM87 FCBGA-695 Launched Status
SKU: DH82HM87
Rating: 4.8 (180 reviews)

Detail Information

Chipset No.:	DH82HM87	Product Collection:	Intel 8 Series Chipsets
Code Name:	Products Formerly Lynx Point	Vertical Segment:	Mobile
Status:	Launched	Launch Date:	Q2'13
Expected Discontinuance:	Q4'15	Lithography:	32nm
TDP:	2.7 W
High Light:	pc chipsets , computer chipset

Product Description

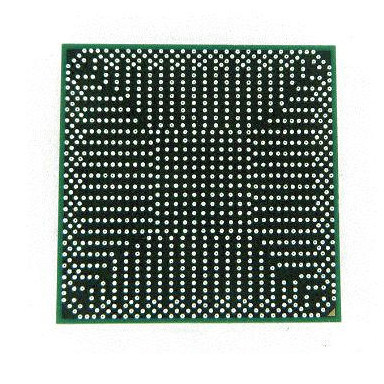

DH82HM87 SR17D Chipsets HM87 Chipset Mobile FCBGA-695

Basic Feature:

Product:Desktop Chipsets

Chipset Series:HM87

Type:PCH

Code Name:Lynx Point

Embedded Options:Non-Embedded

PCIe Revision:2.0

PCIe Configurations:8 Lanes, x1, x2, x4

Integrated Graphics:Without Graphics

Number of USB Ports:14

Number of SATA Ports:10

TDP - Max:2.7 W

Package / Case:FCBGA-695

Packaging:Cut Tape

Packaging:Reel

Height:1.573 mm

Length:20 mm

Width:20 mm

Brand:Intel

Mounting Style:SMD/SMT

CNHTS:8542319000

CPU Configuration - Max:1

FSB Parity:No Parity

Graphics Output:VGA

Supplemental Information

Embedded Options Available:No
DatasheetView now
Product BriefView now

Processor Graphics

Integrated Graphics: No
Graphics Output:VGA
Intel® Clear Video Technology:Yes
# of Displays Supported :3

Expansion Options

PCI Support:No
PCI Express Revision:2.0
PCI Express Configurations :x1, x2, x4
Max # of PCI Express Lanes:8

I/O Specifications

# of USB Ports:14
USB Revision:3.0/2.0
USB 3.0:6
USB 2.0:8
Total # of SATA Ports:6
Max # of SATA 6.0 Gb/s Ports:4
RAID Configuration:0/1/5/10
Integrated LAN:No
Integrated IDE:No
Integrated SAS ports:No
PCIe* Uplink:No

Package Specifications

Max CPU Configuration:1
Package Size:20mm x 20 mm x1.573mm

Advanced Technologies

Intel® Virtualization Technology for Directed I/O (VT-d):Yes
Intel® HD Audio Technology:Yes
Intel® Matrix Storage Technology:Yes
Intel® Rapid Storage Technology:Yes
Intel® Smart Connect Technology:Yes
Intel® Smart Response Technology:Yes

Certification:	ORGINAL PARTS
Model Number:	DH82HM87

Minimum Order Quantity:	1-10 PIECE
Price:	Negociation
Packaging Details:	Tray, 15cm X 15cm X 10cm
Payment Terms:	T/T, PayPal, Western Union, Escrow and others
Supply Ability:	1000pcs/Month
